Assembly

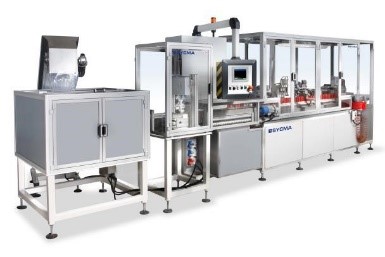

Linear mechanical machine for the assembly of mascara and lip gloss applicator composed of cap, integral or 2-piece stem, mascara brush or flock tip applicator.
The machine is fully mechanical with a very limited use of compressed air, all mechanical movements are driven by a single motor.
This solution drastically reduces the power consumption up to 60% compared to a traditional electro-pneumatic system.
Possibility to assemble snap fit type cap/stem or with hot melt glue. Standard mascara brush assembly (by induction) or plastic mascara brush/flock tip applicator assembly (by staking). The machine works on 2 pieces at a time reaching an output of 60/70 pieces per minute.

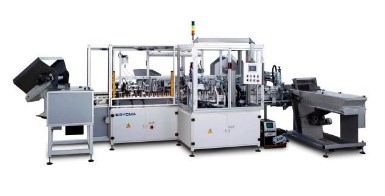

Linear mechanical machine for the assembly of special mascara applicator composed of integrated hollow stem/threaded neck, wiper, aluminum ferrule, inner stem and aluminum cap. The machine is equipped with an axial registering system for the bottle’s neck, lubricating group to facilitate wiper insertion, wiper insertion quote inspection device and hot melt dispenser for gluing the aluminum cap. The machine works on 2 pieces at a time reaching an output of 60 pieces per minute.

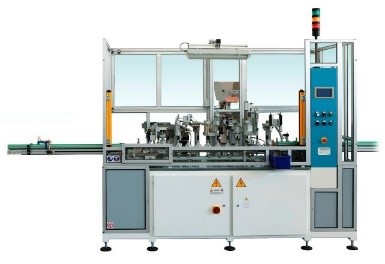

Linear mechanical machine for the assembly of plastic brush with central base of duo applicator.
The machine is fully mechanical with a very limited use of compressed air, all mechanical movements are driven by a single motor. This solution drastically reduces the power consumption up to 60% compared to a traditional electro-pneumatic system.
The assembly operation can be snap fit type or with hot melt glue. Production output: 40/50 pieces per minute.

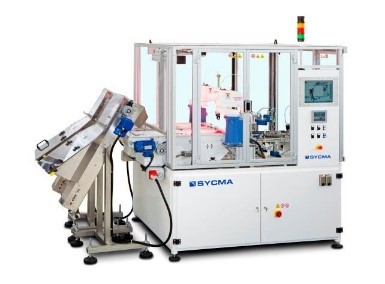

Flexible loading unit for mascara and/or lip gloss applicators. The bulk fed components are then sorted, recognized by a vision system and loaded by a SCARA robot into the transport system nests.
A 2-axis manipulator picks and places the applicators into the downstream assembly equipment.

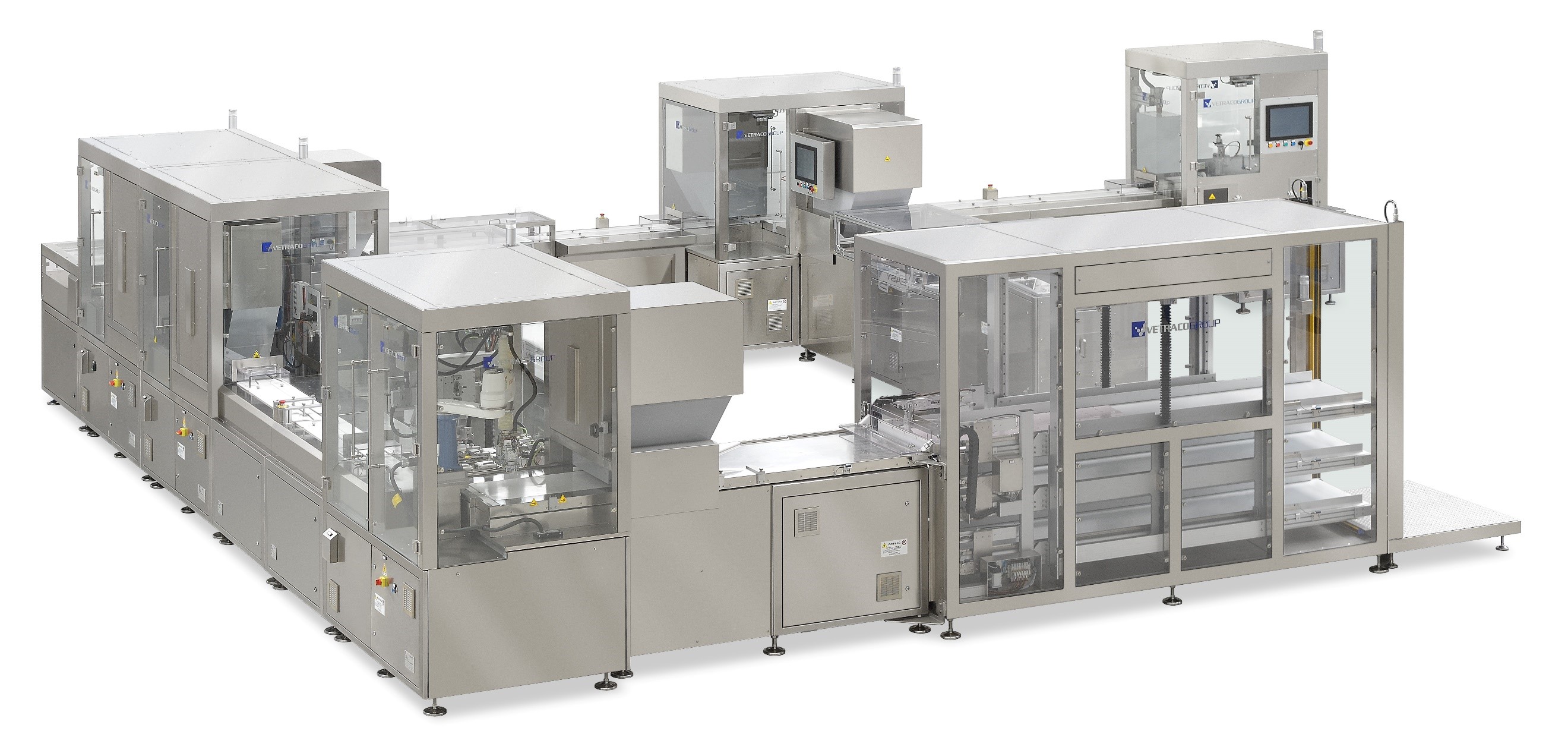

On the fly assembly: conveyor tracking in picking and placing the components Machine modular concept design:
– Universal machine base for all modules.
– Possibility of line expansion any time in the future.
– Manual modules can be replaced any time without major modification to the line layout; this allows increased line automation when production numbers justify the investment.
Machine can run any shape and allows color and/or logo recognition ad orientation. The type of buffer and its size can be chosen based on customer’s needs and type of assembly. Extremely low air consumption (an integrated air compressor can be installed upon request).
Key Features:
– Tool free quick format change.
– Format change low parts count (no piece holders).
– Masked change over time – Module bypass possibility.
– Recipe storage on color touchscreen HMI.
– Step by step recipe creation with on screen programming guide.
– User friendly operator interface

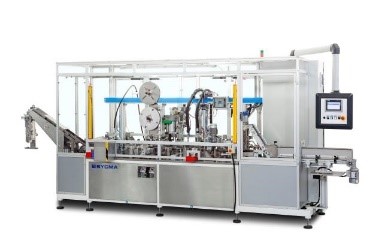

Linear mechanical machine for filling and assembling pen’s cartridge (refill).
The machine is fully mechanical with a very limited use of compressed air, all mechanical movements are driven by a single motor. This solution drastically reduces the power consumption up to 60% compared to a traditional electro-pneumatic system.

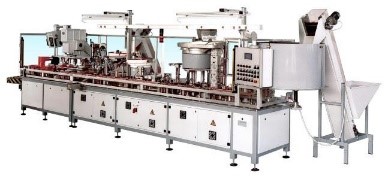

Linear mechanical machine for filling and assembling of markers.
The machine is fully mechanical with a very limited use of compressed air, all mechanical movements are driven by a single motor. This solution drastically reduces the power consumption up to 60% compared to a traditional electro-pneumatic system.

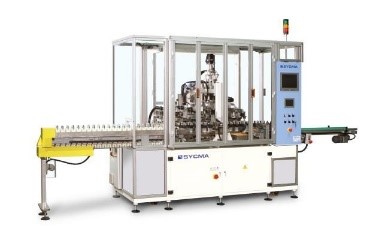

Linear mechanical machine for the gluing of metal or plastic inserts on to a glass perfume bottle.
The machine is fully mechanical with a very limited use of compressed air, all mechanical movements are driven by a single motor. This solution drastically reduces the power consumption up to 60% compared to a traditional electro-pneumatic system.
Possibility of assembly with UV or hot melt glue. Production output: 25 pieces per minute.
